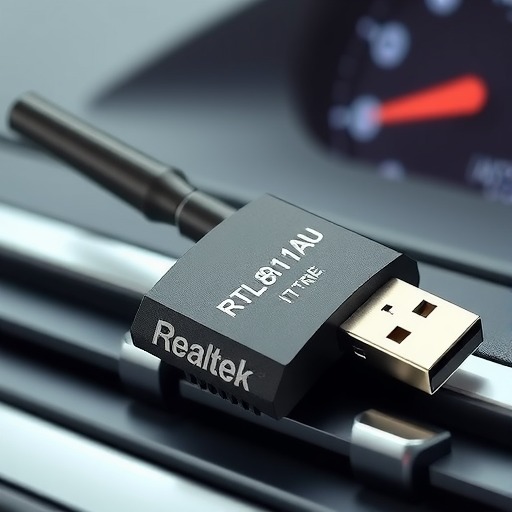

realtek RTL8811AU USB 5G wifi 模块 1T1R 无线模块

realtek RTL8811AU USB 5G wifi 模块 1T1R 无线模块

Features

Descriptions

Main Chipset

Realtek RTL8811AU

Operating Frequency

2.4G: 2.4000GHz～2.4835GHz

5G: 5.150GHz～5.825GHz

Host Interface

USB 2.0

WIFI Standard

iEEE802.11a/b/g/n/ac

Modulation

802.11b:QPSK , BPSK , 16QAM ,64QAM with OFDM

802.11 g/n: BPSK , QPSK , 16QAM ,64QAM with OFDM

802.11a: QPSK , BPSK , 16QAM ,64QAM with OFDM

802.11ac:QPSK , BPSK , 16QAM ,64QAM,256QAM with OFDM

PHY Data rates

802.11a:6,9,12,18,24,36,48,54Mbps

802.11b: 11,5.5,2,1 Mbps

802.11g:6,9,12,18,24,36,48,54Mbps

802.11n: up to 150Mbps

802.11ac: up to 433.3Mbps

Transmit Output Power

802.11b@11Mbps 17±1.5dBm

802.11g@6Mbps  15±1.5dBm

802.11g@54Mbps15±1.5dBm

802.11n@65Mbps 14±1.5dBm

14±1.5dBm

14±1.5dBm

14±1.5dBm

802.11a@54Mbps 13±2dBm

802.11ac@MCS7 13±2dBm

802.11ac@MCS9 12±2dBm

Operation Range

Up to 150meters in open space

RF Antenna

External Antenna

OS Support

Windows XP,Vista.Win7

Security

WEP,TKIP,AES,WPA,WPA2

Dimension

L23.0mm*W17.0mm*T3.0mm

Power Consumption

3.3VPower supply

LINK

110mA

TX 2.4G

20M:190mA;  40M:180mA

TX 5G

150mA

RX

120mA
